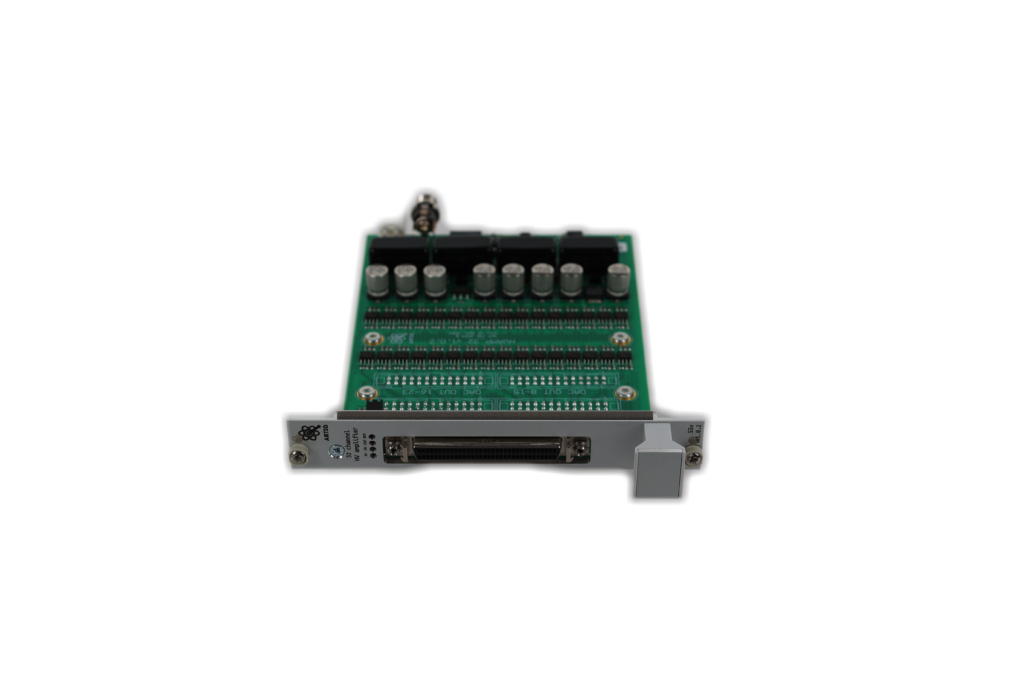

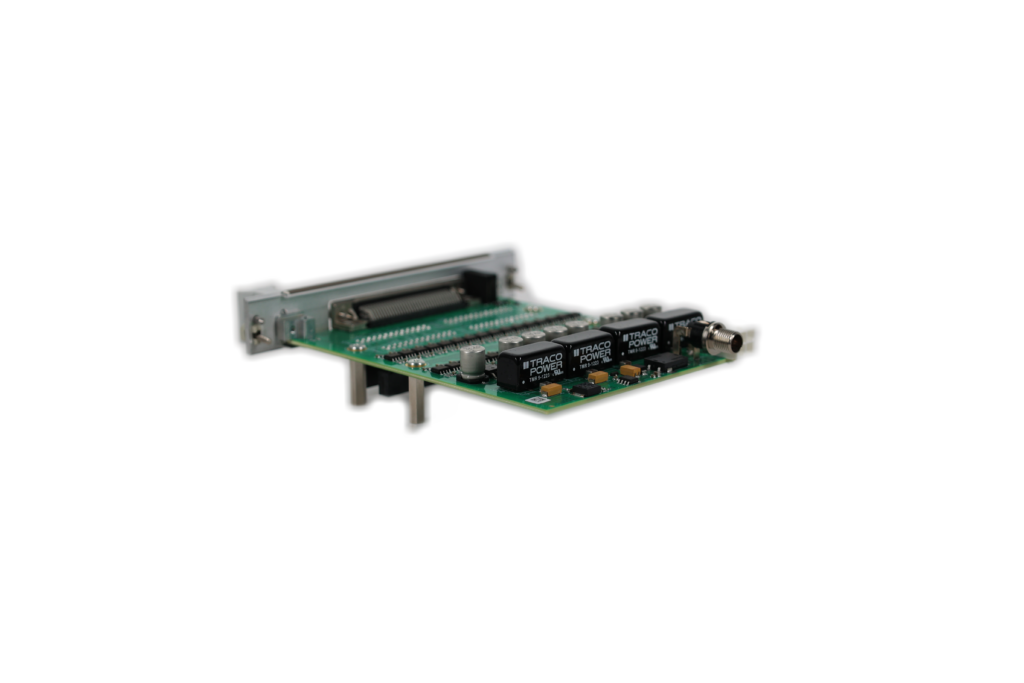

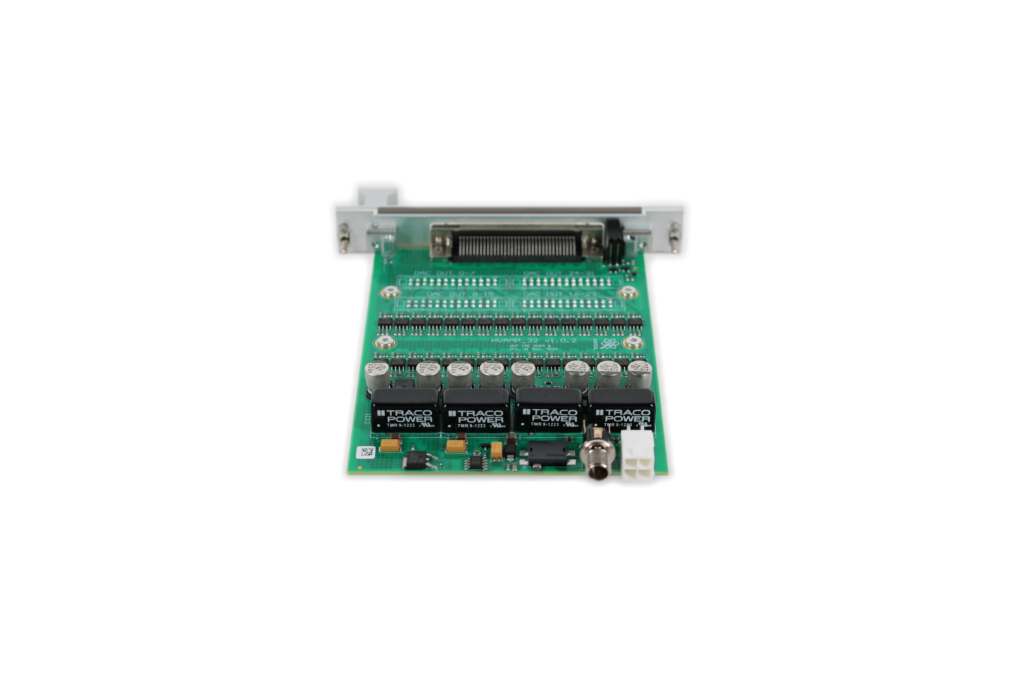

HVAmp 32ch is a universal module working as a 32-channel amplifier usable stand-alone or as a mezzanine for Fastino and Zotino. It allows amplify signal to +/-25 V output range in 4.8 MHz bandwidth with power limited by slew rate at the level 21 V/μs and total power consumption of 9W idle. The unit is based on LTC6090 or OPA462 amplifiers and allows connection via IDC or mezzanine connectors compatible with Zotino/Fastino. The module work is controlled by board and channel over-temperature protection circuits which disable high voltage or specific channels upon fault detection
Main features
- 32-channel High Voltage amplifier
- ±25 V output range
- 12MHz/gain, for +/-25V range BW is 4.8MHz typ
- power BW limited by 21V/μs SR
- stand-alone or mezzanine assembly options (Fastino/Zotino compatible)
- integrated overtemperature protection (per channel and per board) with output disable
- external 12V supply (9W idle power consumption)
